Valved Silencers
- Details
- Hits: 560
We have a range of valved Stainless Steel Silencers allowing an alteration of performance and sound from your vehicle.
We stock the three basic types plus seperate actuator kits at the moment and will keep abreast of new innovative designs :-

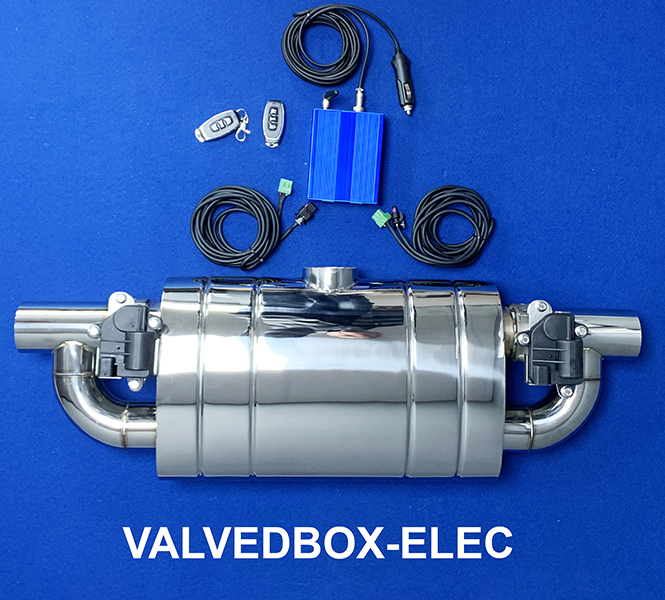

- Integrated Electrically actuated valves with remote fob, operating control box connected to lighter socket.

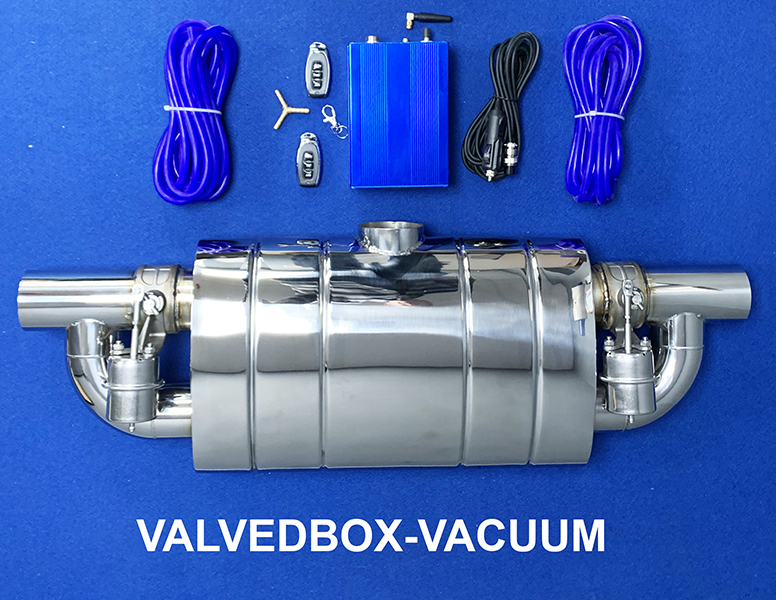

- Integrated Vaccuum actuated valves with remote fob, operating control box connected to lighter socket.
- Silencer configured for external valves as in the VW Golf Mk8 rear Silencer.
- Electrical actuation kit with weld inline valve.
- Electrical Valve only with its connecting lead.
- Vaccum actuation kit with weld inline valve.
- Vacuum Valve only.
 |
||
| Part is supplied with all the components shown in the image | ||
| Overall Unit Length | 750mm (291/2") | |
| Silencer Box Length | 400mm (16)" | |
| Silencer Box Depth | 240mm (91/2") | |
| Part Number | Inlet Bore Size | Outlet Bore Size |
| VALVEDBOX-63-60-ELEC | 63mm (2.5") | 60mm |
| VALVEDBOX-76-63-ELEC | 76mm (3") | 63mm (2.5") |
 |
||
| Part is supplied with all the components shown in the image | ||
| Overall Unit Length | 750mm (291/2") | |
| Silencer Box Length | 400mm (16)" | |
| Silencer Box Depth | 240mm (91/2") | |
| Part Number | Inlet Bore Size | Outlet Bore Size |
| VALVEDBOX-63-60-ELEC | 63mm (2.5") | 60mm |
| VALVEDBOX-76-63-ELEC | 76mm (3") | 63mm (2.5") |
 |
 |
|

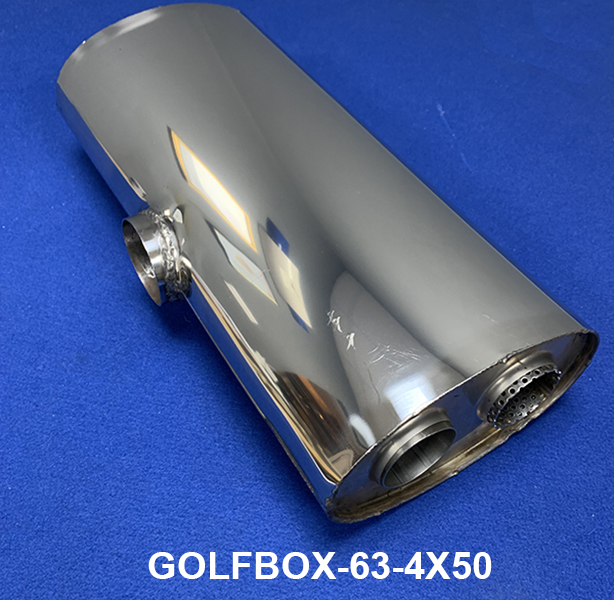

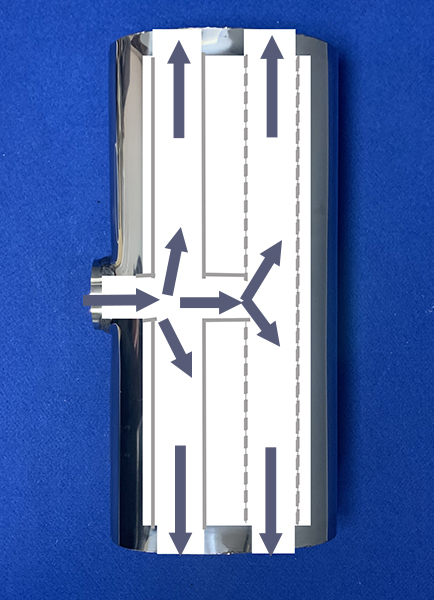

NOTE: This Silencer does not have integral valves and is produced for the VW Golf Mk 8 as replacement Stainless Steel Rear Silencer. The user may configure for another vehicle with their own valve system. The exhaust path farthest from the inlet shown with dotted lines in the sketch is the silenced path. |
|
| Part Number | GOLFBOX-63-4X50 |
| Inlet Diameter | 63 mm |
| Outlet Diameters | 50 mm |
| Overall Length | 18" |
| Silencer Oval Width | 81/2" |
| Silencer Oval Depth | 51/4" |
 |
 |
| Electrical Exhaust Valve Control Kit Part No. | Contains Control module & one valve with lead as above |
| 2"ELEC-VALVE-KIT | Weld valve inline to 2" Pipe |
| 2.25"ELEC-VALVE-KIT | Weld valve inline to 2.25" Pipe |
| 2.5"ELEC-VALVE-KIT | Weld valve inline to 2.5" Pipe |
| 3"ELEC-VALVE-KIT | Weld valve inline to 3" Pipe |
 |
 |
| Vacuum Exhaust Valve Control Kit Part No. | Contains Control module & one valve as above |
| 2.25"VAC-VALVE-KIT | Weld valve inline to 2.25" Pipe |
| 2.5"VAC-VALVE-KIT | Weld valve inline to 2.5" Pipe |
| 3"VAC-VALVE-KIT | Weld valve inline to 3" Pipe |
| |
|
| Elec Valve only Part Numbers | Valve includes lead as above |
| 2"ELEC-VALVE | Weld valve inline to 2" Pipe |
| 2.25"ELEC-VALVE | Weld valve inline to 2.25" Pipe |
| 2.5"ELEC-VALVE | Weld valve inline to 2.5" Pipe |
| 3"ELEC-VALVE | Weld valve inline to 3" Pipe |
| |
|
| Vacuum Valve only Part Numbers | Valve only as shown |
| 2.25"ELEC-VALVE | Weld valve inline to 2.25" Pipe |
| 2.5"ELEC-VALVE | Weld valve inline to 2.5" Pipe |
| 3"ELEC-VALVE | Weld valve inline to 3" Pipe |
