| In addition of our main product lines to the trade, we also supply Exhaust Hangers, Stainless Steel Rod, Stainless Steel Flat Bar, Stainless Steel Tubing, Stainless Steel Clamps, MIG Weld Wire and a small selection of Rubber Exhaust Mounts, all of which are detailed below. |
Stainless Steel 'Sensor Boss'
| Lambda Boss M18 x 1.5mm | Boss M12 x 1.25mm | Boss M14 x 1.5mm |
 |
 |
 |
 |
 |
 |
| Part No. = SSLAMBDABOSS | Part No. = SSBOSS1 | Part No. = SSBOSS2 |
|
Lambda Boss M18 x 1.5mm pitch with reduced outer diameter to aid location before weld |
Sensor Boss M12 x 1.25mm pitch with thread down to 15mm deep of overall depth 20mm |
Sensor Boss M14 x 1.5mm pitch Overall length is 16mm |
| Boss M16 x 1.5mm | Long Boss M16 x 1.5mm | Boss M18 x 1.5mm |
 |
 |
 |
 |
 |
 |
| Part No. = SSBOSS3 | Part No. = SSBOSS4 | Part No = SSBOSS5 |
|

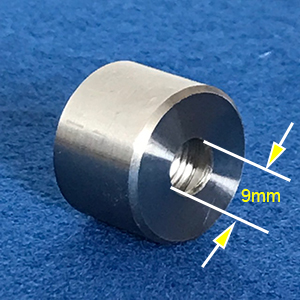

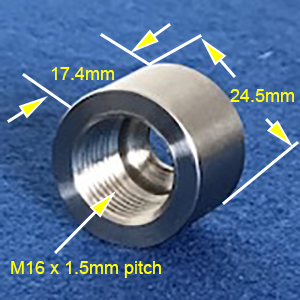

Sensor Boss M16 x 1.5mm to depth of 15mm with 9mm through hole |
Sensor Boss M16 x 1.5mm pitch to 22mm deep with 5.5mm through hole |
Sensor Boss M18 x 1.5mm pitch with 12mm through hole and 3mm deep flange |
 |
 |
| Part No. = SSNOXBOSS-M20 | |
|
NOX Boss M20 x 1.5mm pitch thread with reduced outer diameter to aid location before weld and lip to prevent over insertion of sensor. |
|
 |
 |
| Part No. = SSNOXBOSS-M22 | |
|
NOX Boss M22 x 1.5mm pitch thread with reduced outer diameter to aid location before weld and lip to prevent over insertion of sensor. |
|
| Boss M16 x 1.5mm | Boss M12 x 1.5mm |
 |
 |
 |
 |
| Part No. = SSBOSS6 | Part No. = SSBOSS7 |
|

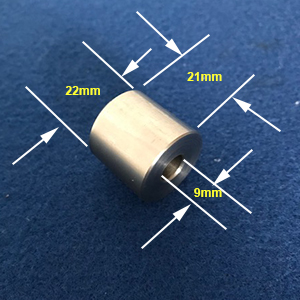

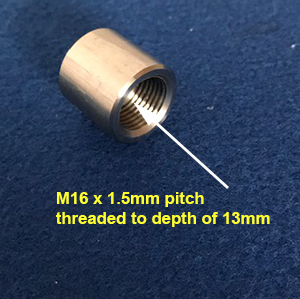

Sensor Boss M16 x 1.5mm to depth of 13mm with 9mm through hole |
Sensor Boss M12 x 1.5mm pitch straight through full 20mm depth
|
 |
Stock Code | Diameter |
Length |
| SSSLCL38X125 | 38 mm | 125 mm |
|
| SSSLCL45X125 | 45 mm | 125 mm |
|
| SSSLCL50X125 | 50 mm | 125 mm |
|
| SSSLCL54X125 | 54 mm | 125 mm | |
| SSSLCL57X125 | 57 mm | 125 mm |
|
| SSSLCL63X125 | 63 mm | 125 mm |
|
| SSSLCL76X125 | 76 mm | 125 mm |
 |
Stock Code | Diameter |
Length |
| SSSTCL63-70 | 63-70mm | 75mm |
|
| SSSTCL57-63 | 57-63mm | 75mm |
|
| SSSTCL45-50 | 45-50mm | 75mm |
|
| SSSTCL38-43 | 38-43mm | 75mm |
|
| Note: To get better fit remove centre space bar |
|||
| Ensure pipes butt inside to prevent leaks |
|||
 |
Stock Code | Diameter |
| SSBC38 | 38mm | |
| SSBC45 | 45mm | |
| SSBC50 | 50mm | |
| SSBC57 | 57mm | |
| SSBC63 | 63mm | |
| SSBC76 | 76mm |
| Stock Code | Diameter mm | Diameter inches |
| SSVBAND-50 | 50mm | 2" |
| SSVBAND-57 | 57mm | 2.25" |
| SSVBAND-63 | 63mm | 2.5" |
| SSVBAND-70 | 70mm | 2.75" |
| SSVBAND-76 | 76mm | 3.0" |
| SSVBAND-89 | 89mm | 3.5" |
| SSVBAND-101 | 101mm | 4.0" |

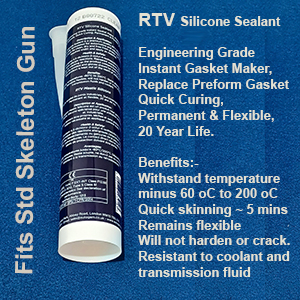

Rubber Exhaust Mounts & Instant Gasket
Part No. = INSTANTGASKET Part No.= EXHPASTE
 |
|
Stainless Steel Grade 304 MIG Weld Wire Part No: SSMIGWIRE Reel Weight: 15kg Wire Diameter: 0.8mm Reel Spindle Diameter: 2" (52mm)
|
| Ball and Socket Repair Joints in Grade 409 Stainless Steel |
|
 |
 |
| Stock Code | Diameter |
| SSRJ45 | 45mm |
| SSRJ50 | 50mm |
| SSRJ57 | 57mm |
| SSRJ63 | 63mm |
| SSRJ76 | 76mm |
