Stainless Bosses





Stainless Steel 'Sensor Boss'



 Lambda Boss M18 x 1.5mm Boss M12 x 1.25mm Boss M14 x 1.5mm
 Part No. = SSLAMBDABOSS Part No. = SSBOSS1 Part No. = SSBOSS2

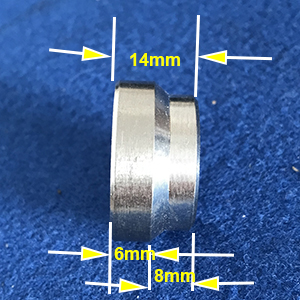

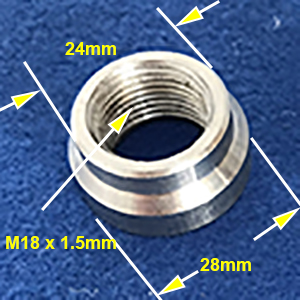

Lambda Boss M18 x 1.5mm pitch

with reduced outer diameter

to aid location before weld

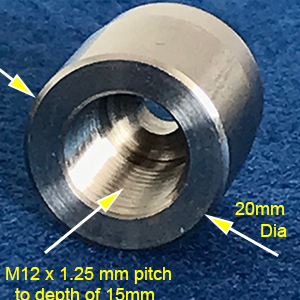

Sensor Boss M12 x 1.25mm pitch

with thread down to 15mm deep

of overall depth 20mm

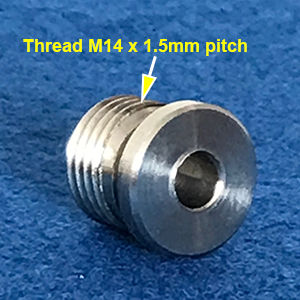

Sensor Boss M14 x 1.5mm pitch

Overall length is 16mm



Boss M16 x 1.5mm  Long Boss M16 x 1.5mm  Boss M18 x 1.5mm
 Part No. = SSBOSS3  Part No. = SSBOSS4 Part No = SSBOSS5

Sensor Boss M16 x 1.5mm

to depth of 15mm

with 9mm through hole

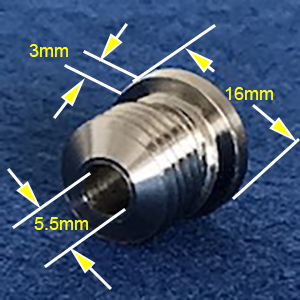

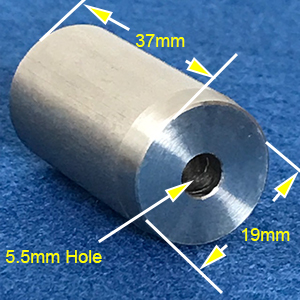

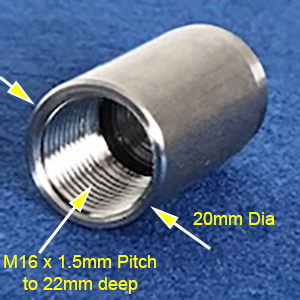

Sensor Boss M16 x 1.5mm pitch

to 22mm deep with

5.5mm through hole

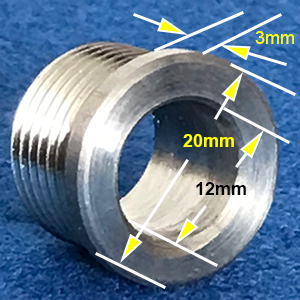

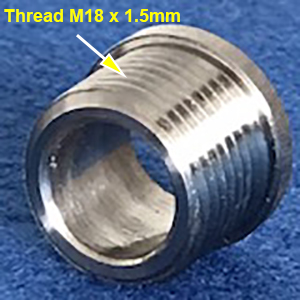

Sensor Boss M18 x 1.5mm pitch

with 12mm through hole

and 3mm deep flange

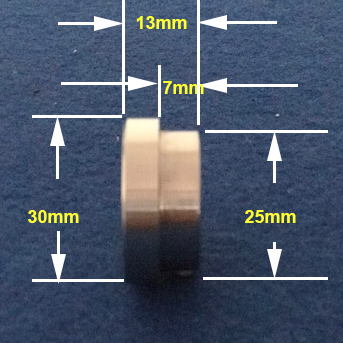

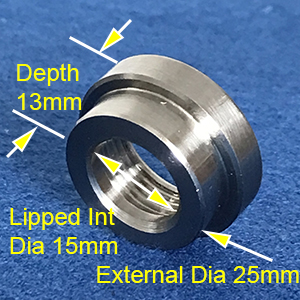

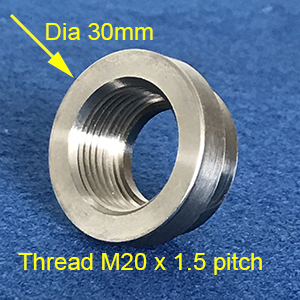

 Part No. = SSNOXBOSS-M20

NOX Boss M20 x 1.5mm pitch thread with reduced

outer diameter to aid location before weld and lip to prevent

over insertion of sensor.

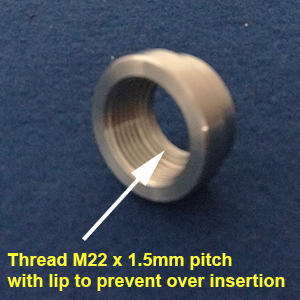

 Part No. = SSNOXBOSS-M22

NOX Boss M22 x 1.5mm pitch thread with reduced

outer diameter to aid location before weld and lip to prevent

over insertion of sensor.



Boss M16 x 1.5mm  Boss M12 x 1.5mm
 Part No. = SSBOSS6  Part No. = SSBOSS7

Sensor Boss M16 x 1.5mm

to depth of 13mm

with 9mm through hole

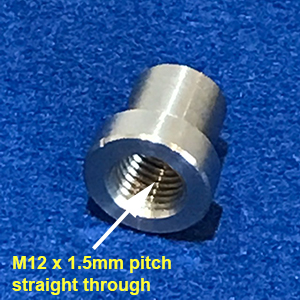

Sensor Boss M12 x 1.5mm pitch

straight through full 20mm depth
